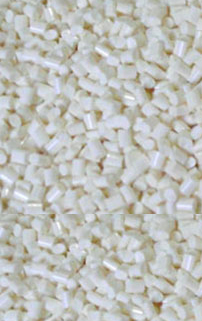

PVC Compounds

PVC Compounds manufacturers

We are a leading manufacturer of premium PVC cable compounds for wide application in the cable industry. Our range of compounds is available for numerous applications for Power Cables, Control and Instrumentation Cables, Winding wire for submersible Pump Motor, Three Core Flat Cables, Appliance Cords, etc. Our PVC compounds are available for both insulation and sheathing.

These compounds are also used for House Wiring, Telecom Cables, Automotive Cables, etc. All our products & PVC compounds conform to standards as per ISO standards. Our compounds are manufactured from top quality Colour Master-batches & are weather resistant, UV resistant, non-migrant, non-blooming.

Specification for PVC compound


Test Test Carried Out Unit Req. Value Observed Value
S. no PVC Grades     RC-41 RC-04 (IS) RC-06H
1. Specific Gravity - - 1.37 1.48 1.50
2. Thermal Stability Minutes 80 110 95 80
3. Volume Resistivity at 27 Dec. C Ohm/cm 1x1013 10x1014 7.5x1013 4x1013
4. Tensile Strength without ageing N/Sq.mm 12.5 17 15 13.5
5 Tensile Strength after ageing for 7 days N/Sq.mm 12.5 17 15 13.5
6. Variation in Tensile Strength % ± 20 5 11 12
7. Elongation at Break without ageing % 150 250 225 200
8. Elongation at Break after ageing for 7 days % 150 250 225 200
9. Variation in Elongation at break % ± 20 ±5 ±8 ±10
10 Loss of Mass Ma/cm² 2 0.8 1.2 1.4
11. Hardness Shore A - 90 88 90
