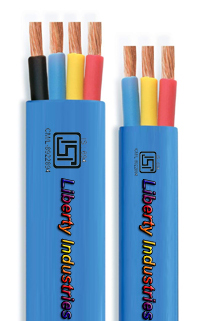

Three, Four Cores Flat Cables for Submersible Pump Motor

Submersible_Pump manufacturers

Our Brand Rotoflex Flat Cables are manufactured for critical space requirements, protection against indefinite immersion in water under specified conditions, protection against raining water and protection against ingress of small solid foreign bodies.

Our Brand Rotoflex Flat Cables are produced from best quality electrolytic copper drawn, on-line annealed & bunched on automatic manufacturing machines. The conductors are insulated with a special grade of PVC and outer sheath consists of a highly abrasion resistant PVC compound. These cables processed on sophisticated twin extrusion line meets and withstands the demanding needs of submersible pump motor power supply.

Double Sheathed Round Submersible Cables Double sheathed round 3 core and 4 core cables are better suited for heavy duty applications like sewage, slurry and dewatering pumps. These conditions requires the sheathing to be able to withstand abrasion, prevent ingress of water along the interstices of the cable, and be resistant to acidic fluids and chemicals.

Conductors: The conductors are drawn from bright electrolytic grade copper annealed and bunched together & have 99.97% Purity.

Insulation: Bunched conductors are insulated with specially formulated PVC compound having high insulation resistance values.

Sheathng: 3 Core are in parallel position and sheathed with a special grade of PVC Compound which is impervious to water, grease, oil etc.

Construction of Flat Cable:

3 Core Flat Cables



Application:
Ideal For Irrigation Pumps, Drinking Water Supply Pumps, Offshore Drilling Rings, Firefighting Equipment, Sewage Treatment Plants, Sea Water Handling Equipments

View Technical Specification(Submersible Flat Cable As Per IS : 694 & B.S. 2004)


Size of Conductor Number/Nom. Dia. of Wires (Nom. Thickness of Insulation (Nom.) Sheath Thickness (Nom.) Approx Overall Dimension (W*T) Current Carring Capacity Resistance (max.) KM @20˚ C
(In Sq. mm) mm mm mm mm
1.50 22/0.30 0.6 0.90 11.6 * 5.5 16 12.10
2.50 36/0.30 0.7 1.00 13.9 * 6.4 22 7.41
4.00 56/0.30 0.8 1.00 16.1 * 7.1 29 4.95
6.00 85/0.30 1.0 1.15 18.6 * 8.0 37 3.30
10.0 140/0.30 1.0 1.40 23.4 * 10.0 51 14.91
16.0 226/0.30 1.0 1.40 27.0 * 11.4 68 1.21
25.0 354/0.30 1.2 2.00 35.4 * 15.0 86 0.78
35.0 495/0.30 1.2 2.00 39.3 * 16.3 110 0.55
