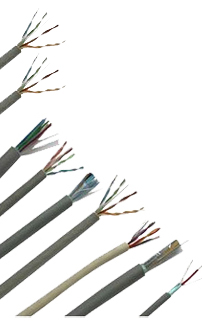

Telephone Cables manufacturers

We are specialized in manufacturing Telephone Cables Armoured / Unarmoured that are made in accordance to industry standards. These are generally used in telephone switching exchanges, switch board and telephone wiring. Available in both standard and customized specifications, these cables are also checked on various parameters to ensure a long service life.

Our copper telephone cables are designed & manufactured to perfection in order to meet the needs for safe and reliable transmission of voice, video and data. We are a highly motivated professional team, with sophisticated infrastructural facilities and sales network to meet the customer's needs.

View Technical Specification


TELEPHONE CABLES AND ALSO AS PER BRITISH STANDARDS
No. of Pairs Conductor Size (mm) Insulation thickness nominal (mm) Dia over insulation (mm) Sheath thickness minimum (mm) Overall dia approx (mm)
2 Pair 0.4 0.25 0.9 0.5 3.5
4 Pair 0.4 0.25 0.9 0.65 5.5
8 Pair 0.4 0.25 0.9 0.65 7
16 Pair 4 0.25 0.9 0.75 9.5
24 Pair 0.4 0.25 0.9 0.75 11
32 Pair 0.4 0.25 0.9 0.75 12.5
32 Pair 0.5 0.25 1 0.75 13
53 Pair 0.4 0.25 0.9 1 10 16
102 Pair 0.4 0.25 0.9 1.4 22.5
128 Pair 0.4 0.25 0.9 1.4 26
128 Pair 0.5 0.25 1 1.4 27
204 Pair 0.4 0.25 0.9 1.8 31
