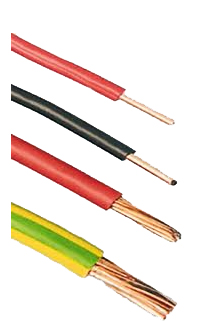

PVC Insulated Flexible Single Core Wire With Copper Conductor:
Flexible Single Core Wires: These cable manufactured by us include good flexibility, adequate voltage resistance and are manufactured as per IS & ISO standards.
These Cables are also known as, PVC Wires, Single Core Wires, Electric wires, Electrical Wires, Panel Wires, Switch Gears Wires.

Insulated electrical wires are used for transmission of low-voltage signals, electric motors, DC power transformers, panel boards, battery cables, etc. The characteristics of the flexible single core cable manufactured by us include good flexibility, adequate voltage resistance and manufacturing as per ISO standards. The flexible single core wire is available as Poly Flex brand PVC insulated wires, insulated electrical wires, unsheathed with bright annealed plain copper conductor, bunched and / or stranded

"Our Brand ROTOFLEX" Plain Copper Conductor, PVC Insulated Unsheathed 650/1100 V, Single Core Cables For Panel Board Wiring AS PER IS : 694:1990 with ISI Mark

View Technical Specification


Area In Sq. mm Conductor Construction in General Cond. Dia. In mm Max. DC resistance ohm/Km at 20°C Insulation Thickness in mm Nominal Cables Dia (Approx.) Current Rating in Amp.
0.5 16/0.20 0.94 39 0.6 2.2 4
0.75 24/0.20 1.2 26 0.6 2.5 7
1 32/0.20 1.34 19.5 0.6 2.6 11
1.5 30/0.25 1.64 13.3 0.6 2.9 14
2.5 50/0.25 2.08 7.98 0.7 3.5 19
4 56/0.30 2.61 4.95 0.8 4.3 26
6 84/0.30 3.5 3.3 0.8 5.3 33
10 140/0.30 4.6 1.91 1 6.7 45
16 126/0.40 6 1.21 1 8.2 60
25 196/0.40 7.6 0.78 1.2 10 75
35 276/0.40 8.7 0.55 1.2 11.3 95
50 396/0.40 10.6 0.39 1.4 13.5 125
70 360/0.50 12.3 0.27 1.6 15 170
95 485/0.50 14.7 0.21 1.8 17.5 210
120 608/0.50 16.7 0.16 2 19 235
150 750/0.50 18.3 0.13 2 21 295
185 925/0.50 20 0.11 2.2 23.5 330
240 1221/0.50 23 0.08 2.2 26.5 400
300 1527/0.50 27.2 0.06 2.4 29.5 475
400 2036/0.50 30.5 0.05 2.6 33.5 550
500 2540/0.5 32 0.04 2.8 37.5 635
630 3200/0.5 39 0.03 3 42 725


"Our Brand ROTOFLEX" Single Core Plain Copper / Aluminum Conductor PVC Insulated unsheathed and PVC Sheathed 650 / 1100 V. House Service wires


    Unsheathed Cables Sheathed Cables Current Rating Amp
Cond. Area Sq. mm Conductor Construction No./ Dia Max. DC Conductor Resistance at 20°C in ohm / km Insulation thickness Overall Diameter Insulation thickness Sheath thickness Overall Diameter
    Copper Aluminum Nominal mm Approx mm Nominal mm Nominal mm Approx mm Copper Aluminum
1 01/01/12 17.7 - 0.7 2.6 0.6 0.8 4.1 10 8
1.5 01/01/38 11.9 19.7 0.7 2.9 0.6 0.8 4.4 13 10
2.5 01/01/78 7.14 11.8 0.8 3.5 0.7 0.8 5 20 15
4 01/02/24 4.47 7.39 0.8 4 0 8 0.9 5.85 26 20
6 01/02/76 2.97 4.91 0.8 4.5 0.8 0 9 6.4 35 27
10 01/3.55 Al 01/08/09 2.94 1 5.7 1 0.9 7.55 44 34
  7/1.35 Cu - - - 6.2 - - 8.05 45 35
16 07/01/70 1.13 1.87 1 7.2 1 1 9.3 55 43
25 07/02/14 0.71 1.18 1.2 8.9 1.2 1.1 11.2 75 58
35 07/02/50 0.51 0.85 1.2 10 1.2 1.1 12.3 90 70
50 07/3.00 0.38 0.63 1.4 11.9 1.4 1.2 14.4 120 92
  19/1.78 - - - 11.9 1.4 1.2 14.4 120 92
70 19/2.14 0.26 0.44 1.4 13.6 - - - 150 116
95 19/2.50 0.19 0.31 1.6 15.8 - - - 175 135
120 02/03/37 0.15 0.25 1.6 17.5 - - - 200 155
150 02/24/37 0.12 0.2 1.8 19.4 - - - 230 175
185 37/2.50 0.1 0.16 2 21.7 - - - 265 205
